Item #:
MMBCC-UNI
$325.00
$253.95
You save:
22%
Color:
3 feet Stainless Braided Hose:
M20 x 5/8 Straight Fitting:
Petcock Drain Kit:
International Shipping:
Availability:
Usually ships the next business day
Quantity:
Send to a Friend

Mishimoto has finally released their universal Billet Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can’s inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.

The 100% billet, 6061 aluminum can accepts –AN fittings at the inlet, outlet, and drain area, allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted in multiple angles. To make maintenance easy, the drain plug can be removed to allow for –AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system. The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well: BLACK, RED, BLUE, GREEN, and PURPLE

Also available are related accessories:

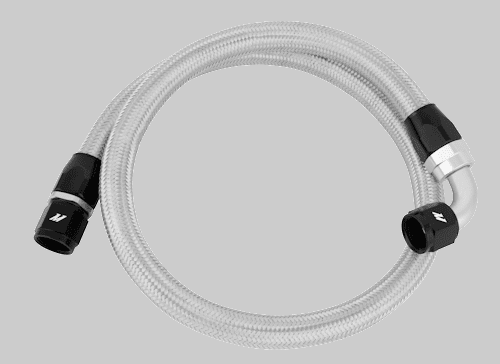

3 feet of stainless braided hose:
Light and flexible, the Mishimoto Stainless Steel Braided Hose is the perfect complement to your oil cooling system and engine bay. The stainless steel construction not only adds to the look of your engine bay, but also prevents corrosion and abrasion. Each light weight hose comes pre-assembled with one 90 degree swivel -10AN fitting and one straight swivel -10AN fitting. With an operating temperature range from -40 degrees F to +300 degrees F and a maximum PSI of 750PSI, you can trust that this hose can withstand the high temperatures that come with performance vehicles, on or off the track. The Mishimoto Stainless Steel Braided Hose can also be used for fuel, oil, vacuum, and water line applications, and is covered by a Lifetime Warranty

Banjo Fitting, M20 x 1.5, Push on for 5/8" line
CNC Machined Makes it easier to route necessary PCV lines, includes 2 dowty oil seals, and of course, a lifetime warranty

Petcock Drain Kit:
Specifically designed for Mishimoto Baffled Oil Catch Cans. Custom 6061 aluminum drain fitting with 3/8” hose barb allows baffle to be retained. Allows baffled catch can to be drained without having to remove the can from vehicle. Plastic nylon barbed mini ball valve can be spliced into rubber hose for ease of draining. Includes 6 feet of high temperature 3/8" rubber hose and three worm-gear clamps for universal installation. And, once again, the ever famous Mishimoto Lifetime Warranty.

Engineering Report

Kit Specs:
OVERALL HEIGHT 6.00” (without fittings)

OVERALL DIAMETER 3.06” (without fittings)

INLET M20 x 1.5 (for accepting -10AN)

OUTLET M20 x 1.5

DRAIN PLUG THREAD SIZE M20 x 1.5

CAPACITY 9 fl oz.

ASSEMBLED WEIGHT 1.6lbs (0.73kgs)

PURCHASE INCLUDES
1 – Black, Anodized 6061 Aluminum Catch Can
2 – Aluminum Mounting Brackets
1 – Bronze Filter
1 – Internal Baffle
3 – Dowty Oil Seals
2 – Push-on Fittings
1 – Drain Plug
1 – 6’ Black Rubber Oil Line
4 – Worm-gear Clamps
1 – Black Rubber Band
Mounting Hardware & Brackets
Limited Lifetime Warranty


Features and Specifications:

Assembly and Installation
