Material: SUS347 Stainless Steel Investment Cast Construction

V-Band Mounting System
Single 44 / 45 / 46mm Wastegate Flange Mount
Compact Design
Suit Garret / Precision / Turbosmart / TiAL Standard Rotation Turbochargers


Package Contents:

1 x Toyota 2JZ-GTE (Compact) V-Band Exhaust Manifold
1 x ARTEC V-Band Locating Ring Set:
1 x Garrett / Turbosmart Ring
1 x Precision Ring
1 x TiAL Ring

Designed in Australia with Lifetime Warranty*

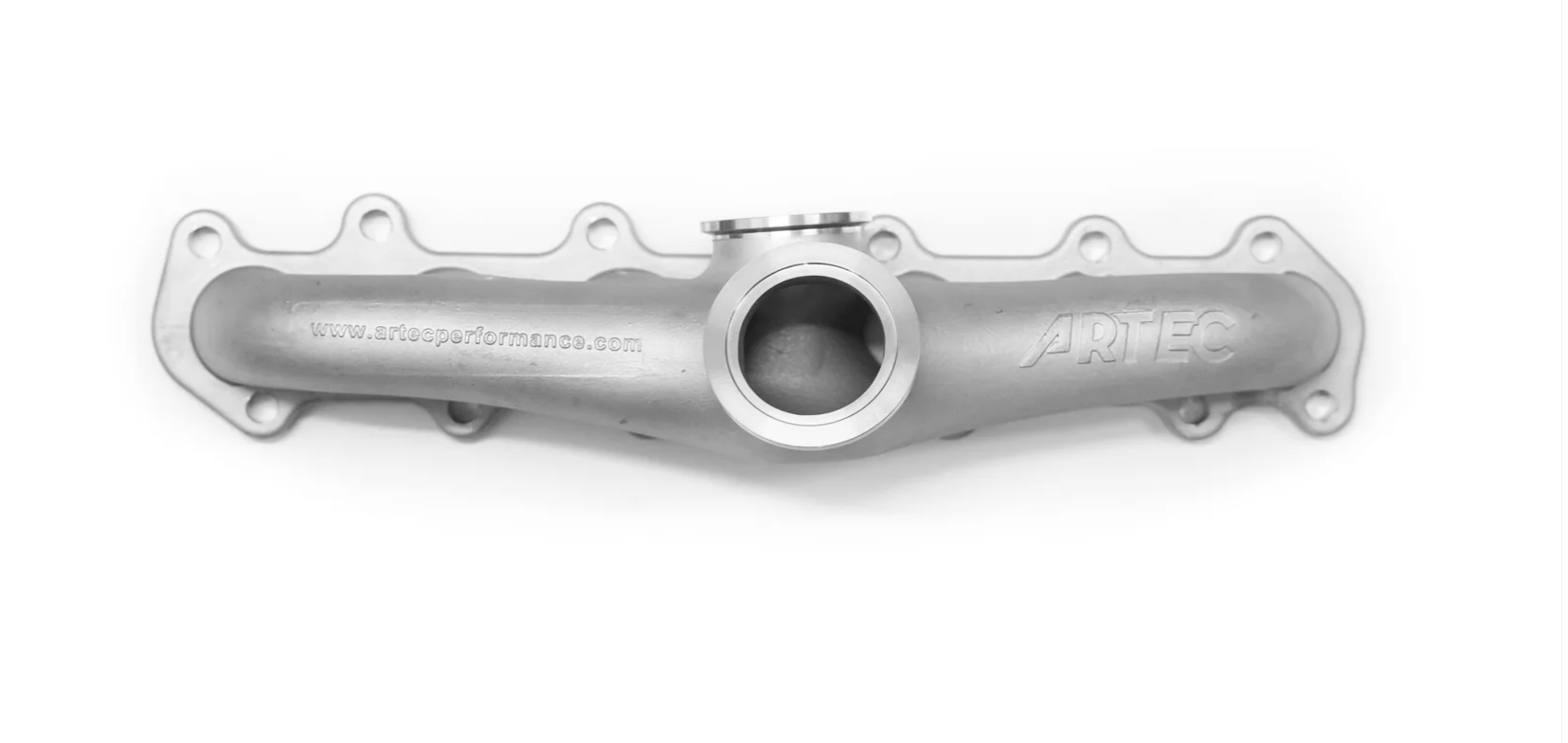

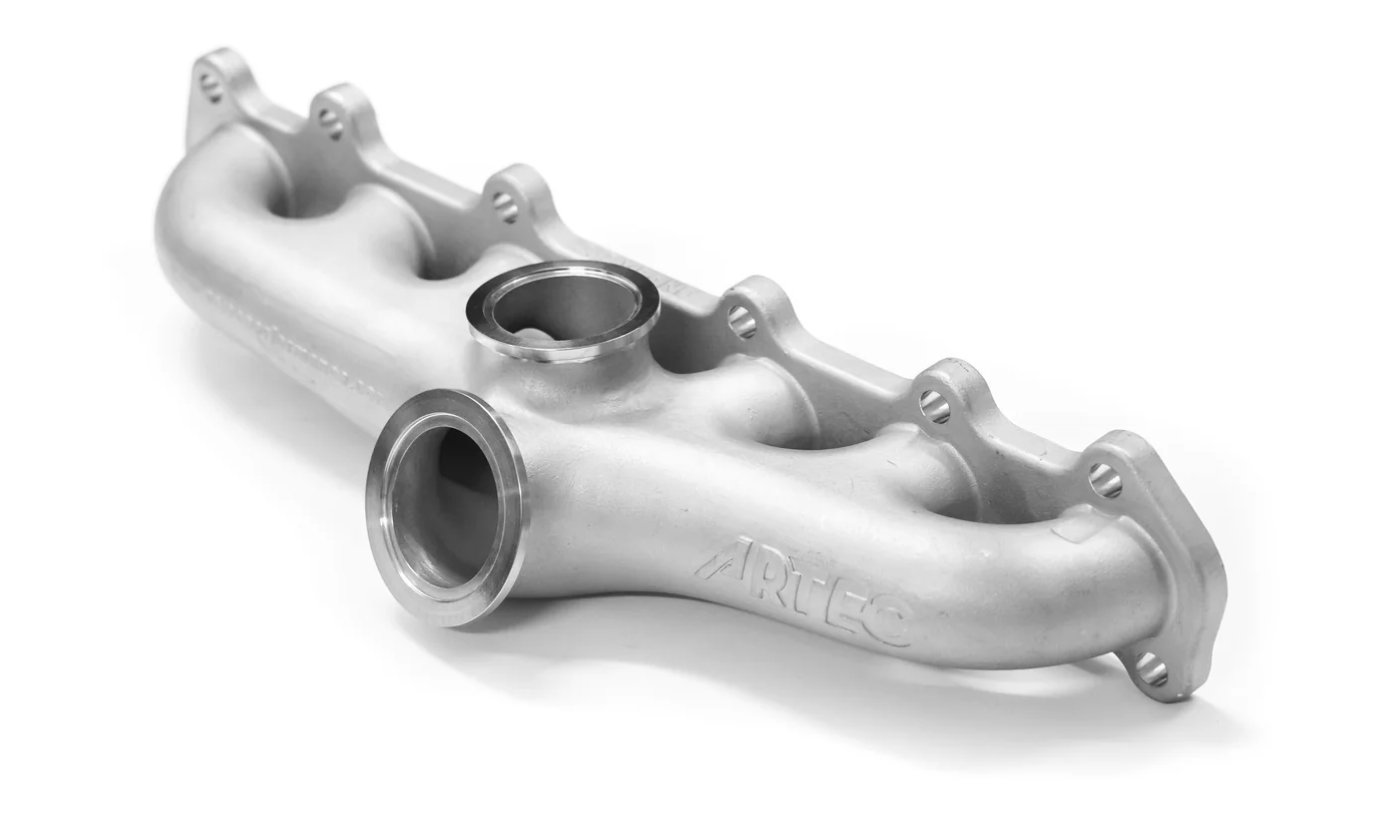

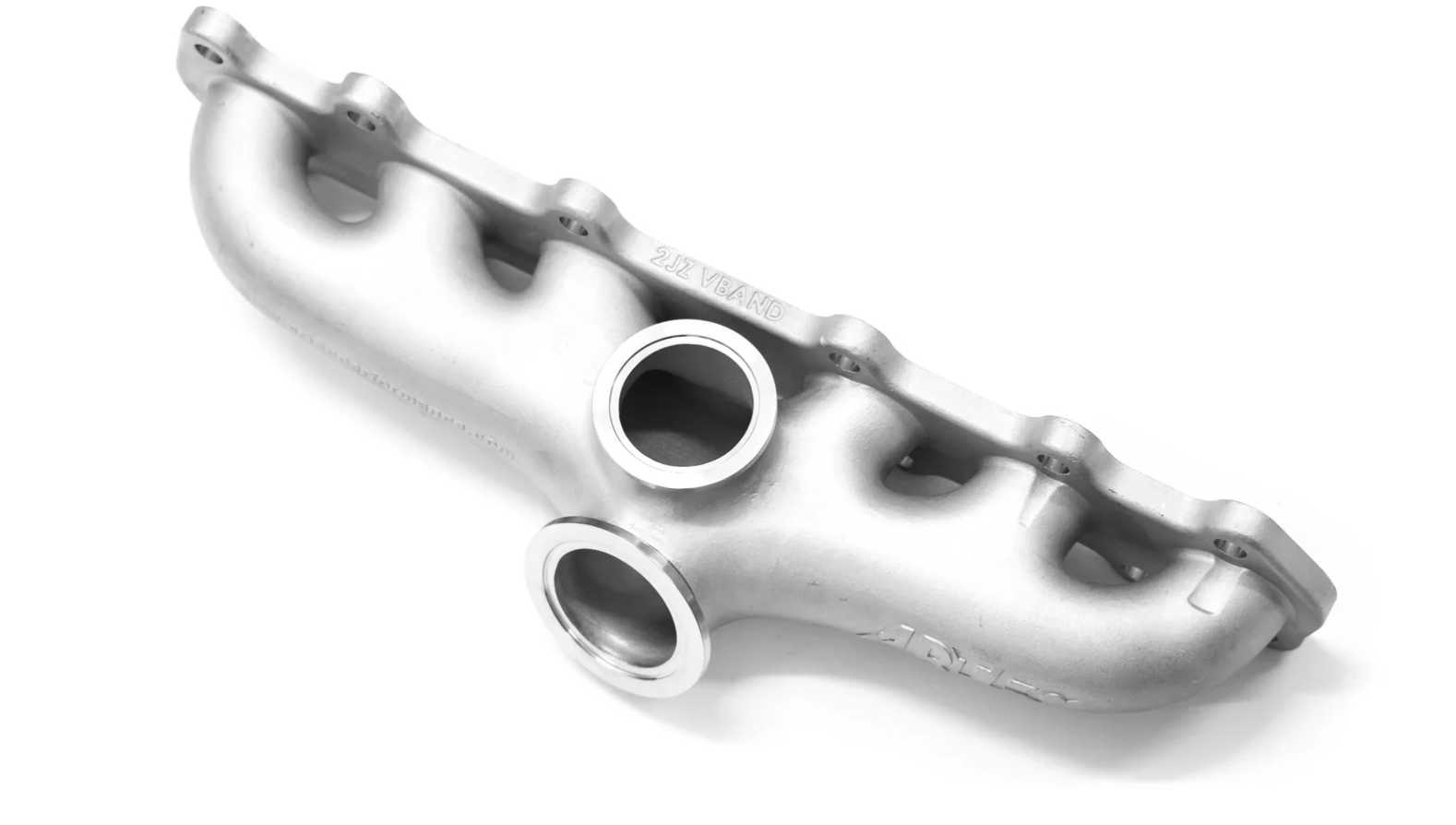

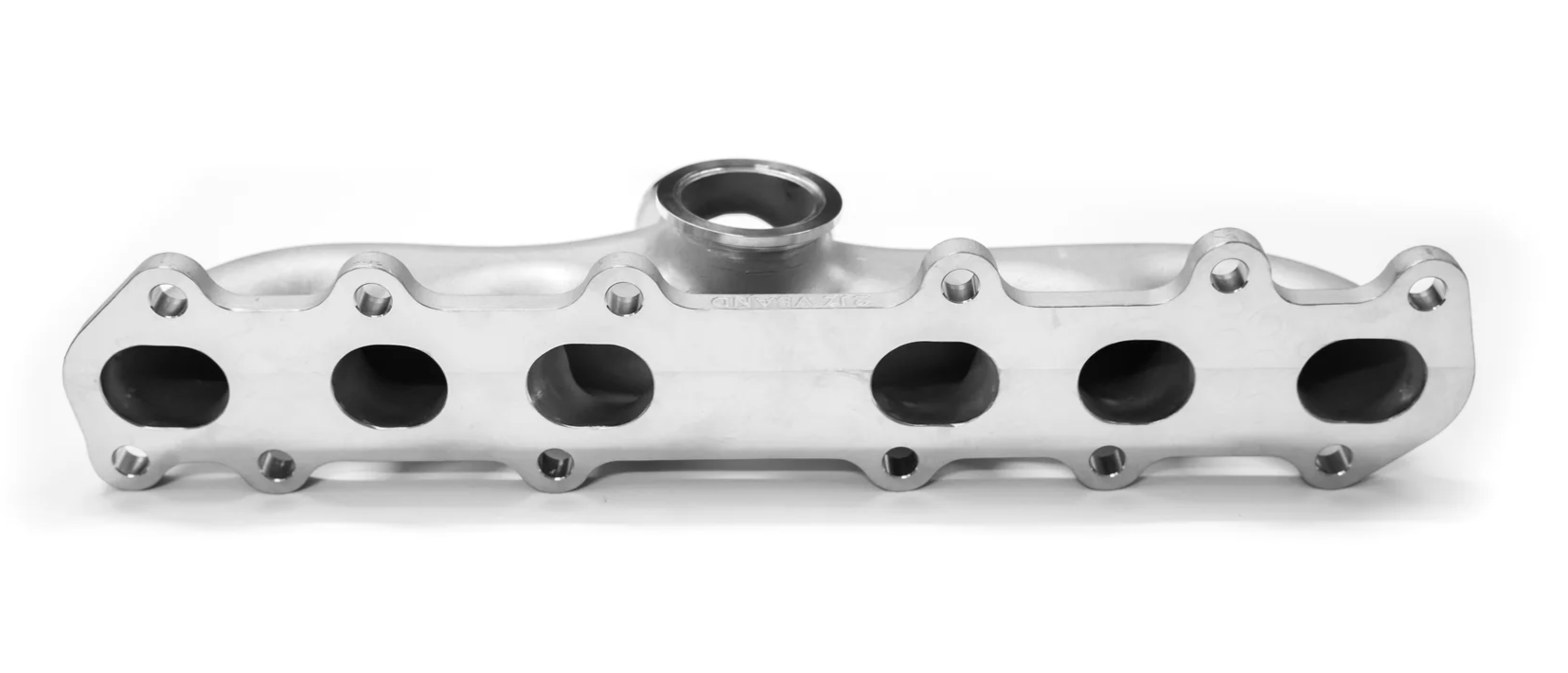

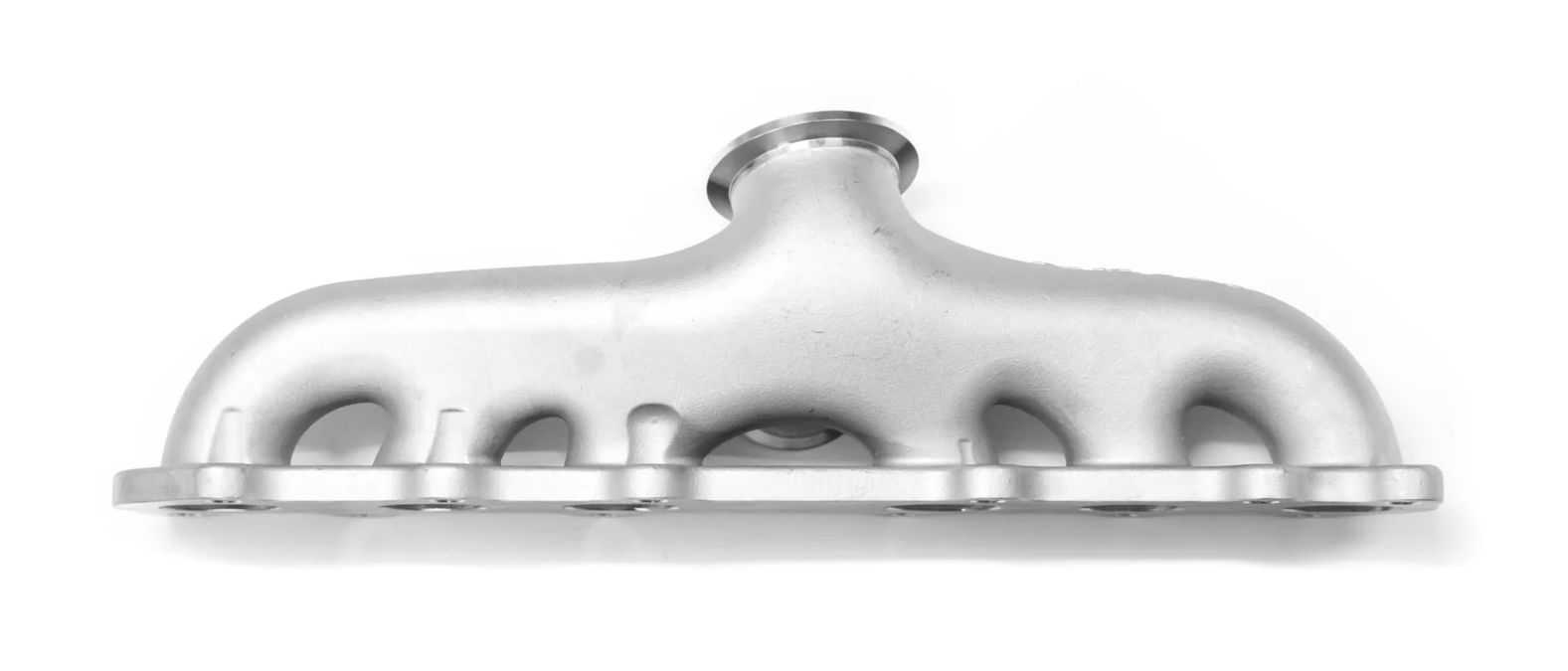

Here is the 2JZ GTE V-Band (Compact) manifold. It’s designed for quick spooling of your turbo with minimum internal volume whilst having correct high flowing short radius’. The manifold was designed for up to 750whp but so far in testing there appears to be zero back pressure issues at 750whp. It uses our innovative multi V-Band system that allows any 50-55mm V-Band turbo to mount to the manifold using our locating rings. You can also fit a range of 44/45/46mm wastegates. These are casting with 347 stainless steel.
