Genuine Plug-In convenience with modern G4X architecture, advanced tuning and motorsport features.

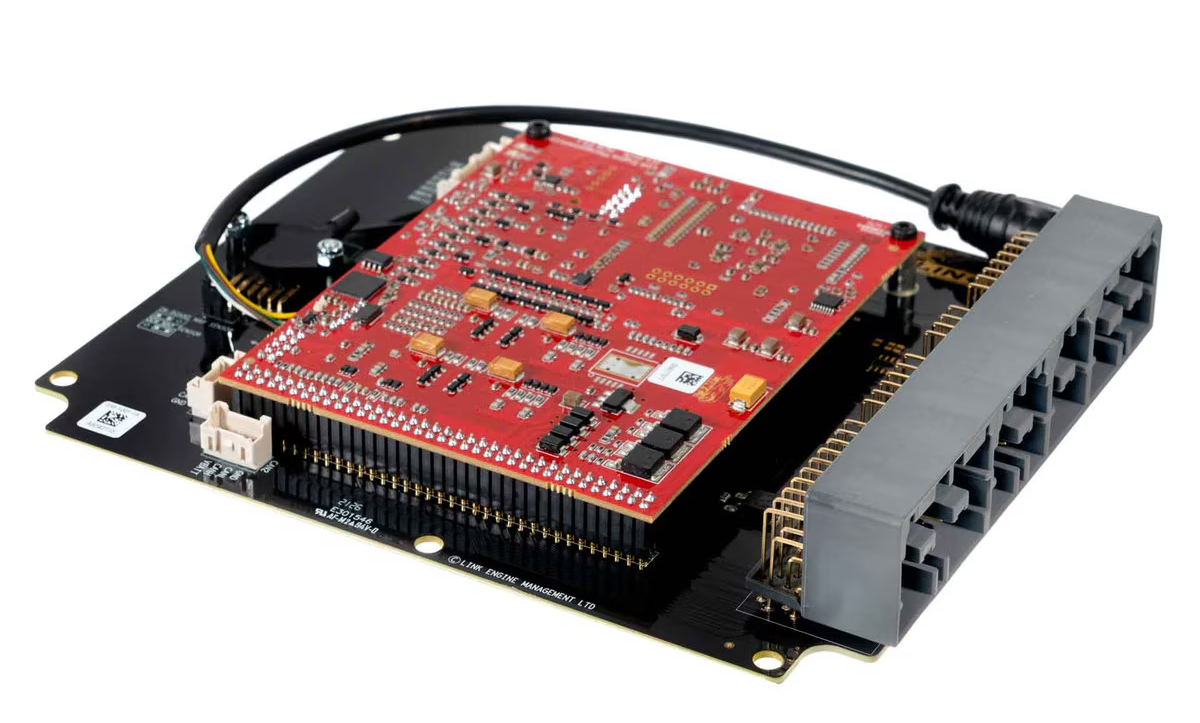

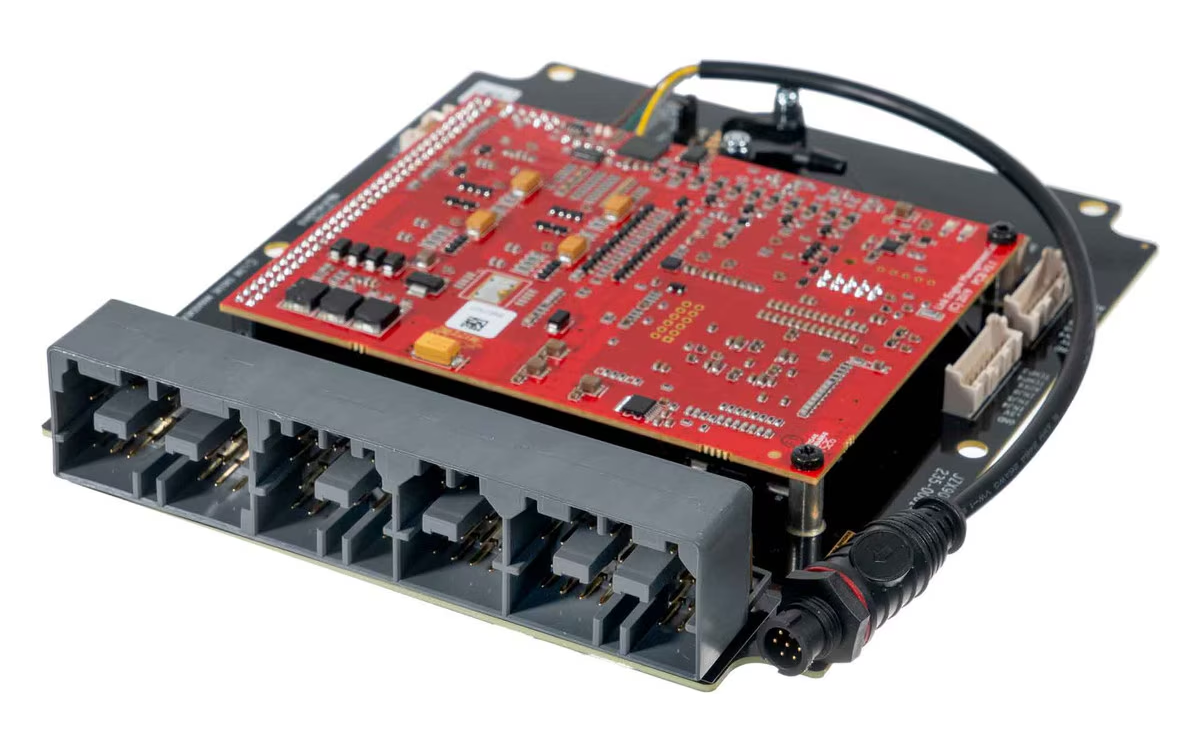

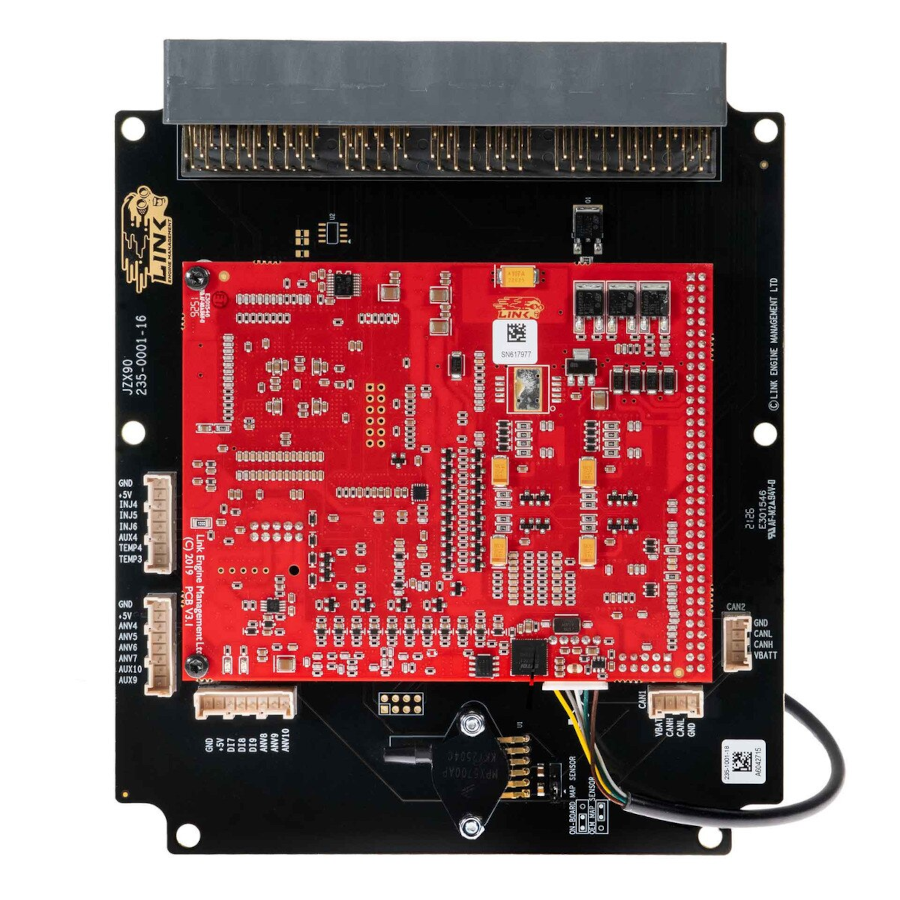

Purpose-built for the Toyota JZX90 with 1JZ-GTE non-VVT-i engine, the JZX90X is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.

Link G4X Plug-in ECUs share the same processor, firmware, software and standard G4X feature set found throughout the G4X range. Features include dual CAN Bus, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a built-in Trigger Oscilloscope, compatibility with aftermarket displays, Direct Automatic Transmission Control and 512MB of onboard data logging. It also features a built-in MAP sensor.

Drawing from Link's championship-winning G4X platform, the JZX90X also supports advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.

A Link Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.

The JZX90X is designed to suit the following applications:

Toyota Chaser X90 with 1JZ-GTE non-VVT-i engine.

Toyota Mark II X90 with 1JZ-GTE non-VVT-i engine.

Toyota Cresta X90 with 1JZ-GTE non-VVT-i engine.

Toyota Soarer JZZ30 with 1JZ-GTE non-VVT-i engine.

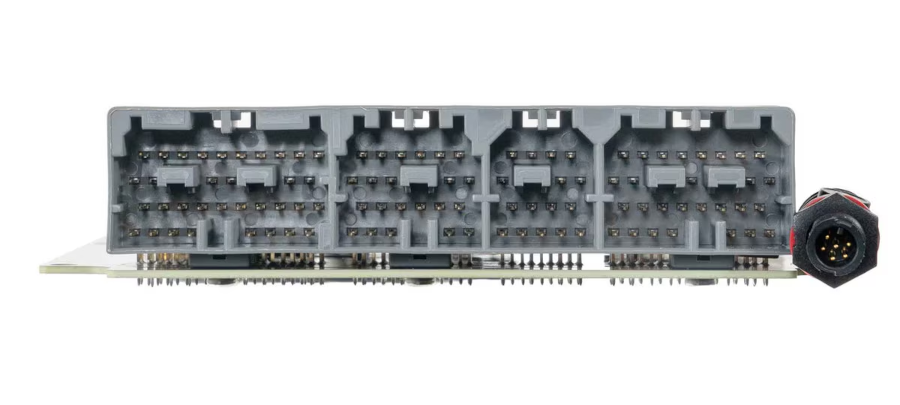

Important: Please check your connector matches the header in the listed photo before purchasing.

Designed for manual transmission vehicles. If you have an automatic model, please contact us to discuss Direct Automatic Transmission Control compatibility.

This model includes an onboard MAP sensor.

Most factory features are supported.

This ECU will need an expansion connector before E-Throttle is usable.

This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
