XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps

XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
Click to Enlarge
XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps

XAT Racing Toyota Lexus 1JZ 2JZ Lightweight Billet Aluminum 13.5 lb Flywheel for CD009 350Z JK40C 370Z Manual 6 Speed Transmission Swaps
Item #:
1-002
$950.00
$599.00
You save:
37%
ARP Flywheel Bolts:
ARP Pressure Plate Bolts:
SupraStore Recommended Clutch:
Extra Replacement Friction Surface:
International Shipping:
Availability:
Usually ships the next business day
Quantity:
Send to a Friend

For this setup, we started completely from scratch, as nothing beats a purpose built billet part from the ground up! As we continue to offer more and more options for the increasingly popular Nissan 350Z/370Z Infiniti G35/G37 6 speed--known to handle over 800 HP at the wheels without opening it up--we continue to bring custom bespoke and billet parts to replace the aged V160 and R154 options.

These Nissan transmissions have been proven that they are a stout and reliable trans that is inexpensive, readily available, and will be for many years to come. Although the early years proved to be troublesome with the CD001, CD003, and CD005 transmissions, by the CD008 and CD009 revisions, shifting has been improved, smoothed out, and solidified. The newer JK41A, JK41B, JK40C, 1EA0A, and 1EA0B G37/370Z transmissions are also reported to have the same internals carried over from the CD009, so there's over 10 model years of production to choose from, and more to come!

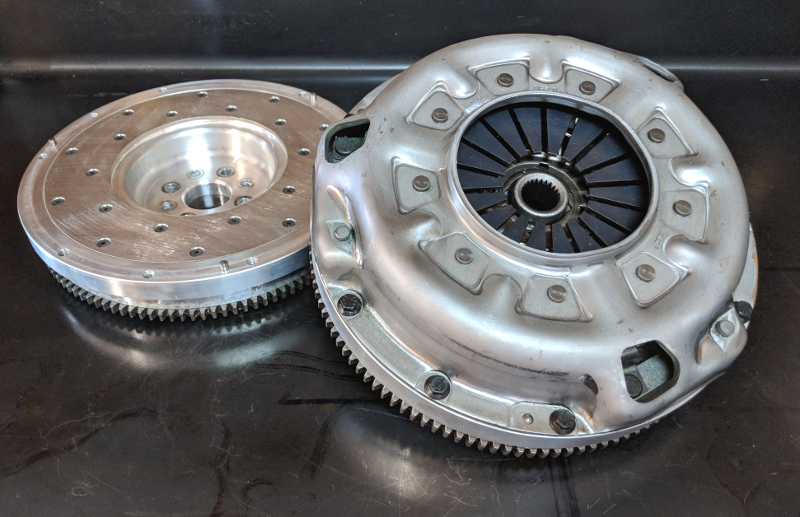

Our light weight flywheel is infinitely rebuildable with replaceable friction surface disc, and at just under 14 lbs, it feels right at home both on the street and at the track.

Flywheel bolts get torqued to 80 ft lbs. Dont forget to do so in a cross pattern!

Single disc clutch options will be anything "off the shelf" that fits the 300ZX turbo (Z32). Please email us if you have ANY questions or need assistance with choosing the right clutch for your build! ** We sell clutch kits to fit this flywheel, ready to go! **

As a quick recap: You will need the J3 auto JZ bellhousing, if you haven't converted already.

The "SupraStore recommended" clutch is the FX400 6 puck sprung disc, which has stock feel and is capable of holding 500+ HP!.

There's also the option for an extra friction surface ring for the flywheel. One is already included with flywheel purchase. With aluminum flywheels, they do not get turned like iron ones. Instead, the surface is infinitely replaceable, and comes with new hardware as well!

Please note: you may need to clearance the bellhousing slightly to make room for the pressure plate to rotate. We are working on a more permanent solution for our next batch

We also have twin disc QuarterMaster clutches (7.25" twin and 8.5" twin disc) and flywheels. Our twin disc kits use a QM throw out bearing. The twin plate kits do NOT use this flywheel, they use a "button flywheel" instead.
