LINK Xtreme Wire-in ECU G4X EMS Engine Management

LINK Xtreme Wire-in ECU G4X EMS Engine Management
Click to Enlarge
LINK Xtreme Wire-in ECU G4X EMS Engine Management
LINK Xtreme Wire-in ECU G4X EMS Engine Management

LINK Xtreme Wire-in ECU G4X EMS Engine Management
Item #:
109-4000
$1,975.00
$1,845.00
You save:
7%

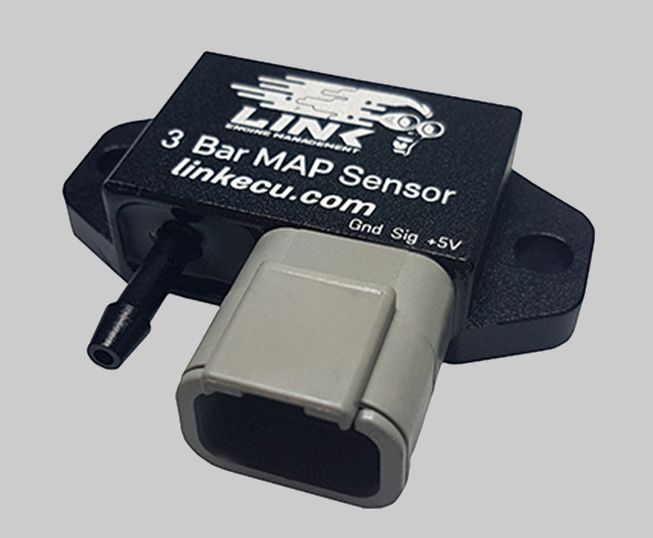

Link MAP Sensor:
Link IAT Sensor:
Link Ethanol Sensor:
Link Oil or Fuel Pressure Sensor:
Link Coolant Temp Sensor:
Boost Control Solenoid Kit:
Universal Wiring:
International Shipping:
Availability:
Usually ships in 2-3 business days
Quantity:
Send to a Friend

One of the best mid level standalone ECUs out there! The Xtreme packs a heck of a punch, and at a very reasonable price. Great choice for UZ V8s, even has built in support for VVTi!!

SPEC OVERVIEW:

Inputs

8/10* x Digital inputs
4 x Temperature inputs
9 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
*2 inputs required when using 2nd CAN Bus

Outputs

8 x Peak and Hold injection drives
6 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs!

Communications

2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection

Physical

Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams

What's in the box? Supplied with USB tuning cable and mounting bracket.

Requires “A” & “B” looms or “A” & “B” connector kits
