TiAL QR BOV Blow Off Valve

TiAL QR BOV Blow Off Valve
Click to Enlarge
TiAL QR BOV Blow Off Valve
TiAL QR BOV Blow Off Valve
TiAL QR BOV Blow Off Valve

TiAL QR BOV Blow Off Valve
Item #:
tialqrbov
$339.00
$305.00
You save:
10%
Color:
Spring PSI:
International Shipping:
Availability:
Usually ships in 2-3 business days
Quantity:
Send to a Friend

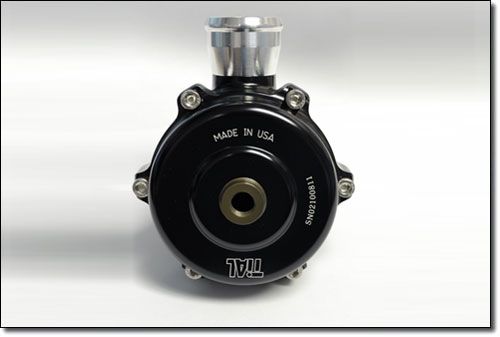

Introducing the TiAL QR Universal Blow Off Valve kit, TiAL's other newest addition to their lineup! For the first time, TiAL offers a recirculating BOV for MAF/AFM users!

If you are running bigger boost in a 1JZ, 2JZ or 7M, go with the 12PSI spring. Smaller turbo cars move downwards. Check the spreadsheet to figure out which spring is right for your application!

The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp is anodized and uses Stainless Steel hardware for a long lasting, corrosion-free appearance.

The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance. The Blow Off Valve also comes with it's own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.

An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.

Please choose your desired color and spring above!

This new more compact recirculating BOV is set up to accept two different types of retun fittings - 1" for Bosch style BPV's and 1.34" for DSM and Evo type valves. Please specify size at time of order.

A nice feature of this BOV is that you can swap bottom with the bottom of a Q BOV to make it a fully vent to atmosphere BOV!
