PHR PowerHouse Racing Fuel Rail Kit for 2JZ GTE GE 1JZ or VVTi
Click to Enlarge
PHR PowerHouse Racing Fuel Rail Kit for 2JZ GTE GE 1JZ or VVTi

PHR PowerHouse Racing Fuel Rail Kit for 2JZ GTE GE 1JZ or VVTi
Item #:
01011205
$299.00
$249.99
You save:
16%
Engine Fitment:
Finish:
Port 1 Fitting:
Port 2 Fitting:
Center Port Fitting:
International Shipping:
Availability:
Usually ships the next business day
Quantity:
Send to a Friend

The PHR high flow fuel for the JZ series features a 17.5mm (-8AN) internal diameter aluminum rail for the most flow possible! Capable of fuel flow to feed 2000 Horsepower. Select which JZ engine you have above!

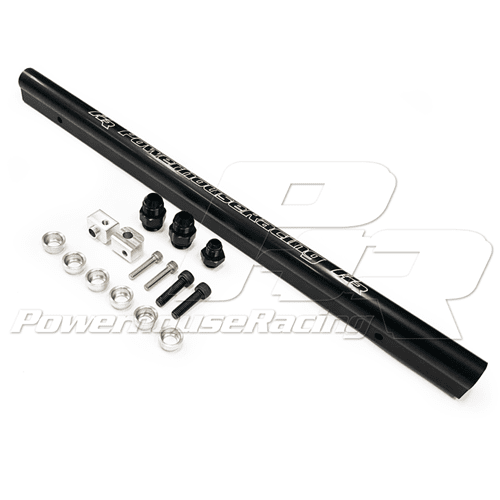

Fuel Rail Kit Includes:
High-flow fuel rail
Mounting brackets
Fuel Injector Bosses
-6 or -8 end port fittings
-6 or a plug for the center port


Available in Black Anodized Finish or Polished Finish. Anodizing offers protection against exotic fuels and alcohols.

For most applications, we recommend dual -8 feed and single -6 return center port. For a small single, single -8 feed with -6 return and center port plugged will do nicely.

Must be used with 14mm injector top. Denso (HKS / GReddy style 11mm) fuel injectors will not fit this large diameter fuel rail. We recommend Injector Dynamics injectors with these fuel rails, but there are many injectors that will work.

Will work with factory intake manifold or Virtual Works intake manifold. Will not work with HyperTune Intake Manifolds.
